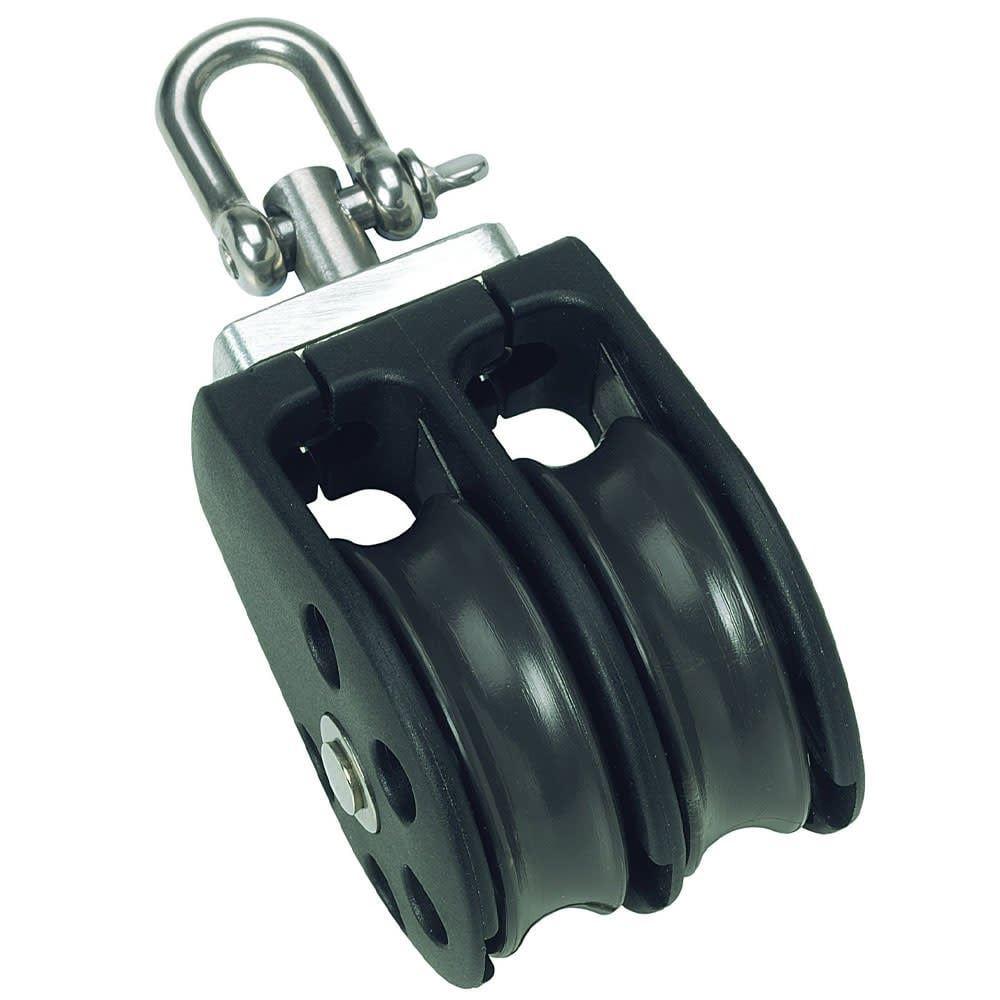

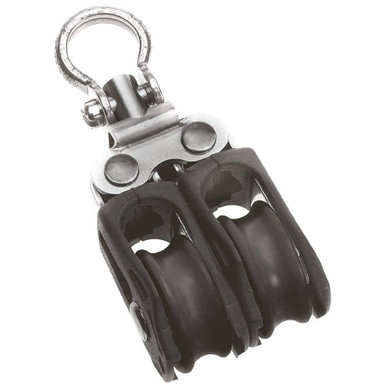

Barton Double Plain Swivel Block

Barton Double Swivel Blocks offer exceptional strength and overall reliability, even in the toughest marine environments.

Each plain bearing block has a precision moulded acetal Sheave running a large diameter brass centre bearing ensuring free running under the highest of loads.

If you're unsure what size sailing block is most suitable for your requirements, click on the size chart button above for a comprehensive guide as to what size is most suitable. If you have any further questions, do not hesitate to contact us by using the 'Ask A Question' button, and one of our team will be happy to assist.

Technical Specifications:

Size 0
Size 1
Size 2
Size 3
Size 4/5

Sheave Size
20mm x 80mm
30mm x 12mm
35mm x
12mm
45mm x
13mm
54mm x
17mm

Safe Working Load

275kg
350kg
370kg
400kg
750kg

Max Rope Diameter
5mm
8mm
8mm
10mm
12mm

Breaking Load
550kg
700kg
740kg
800kg
1500kg

Length
65.8mm
73mm
80mm
100mm
130mm

Weight
40g
78g
86g
131g
290g
